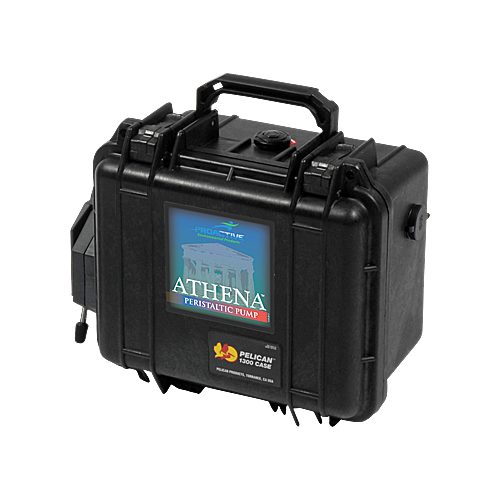

12V Peristaltic Pump Athena

The 12V peristaltic pump Athena® is lightweight and compact. To use, simply attach an external power source such as a 12-volt deep cycle battery to energize the pump. A high-performance motor consumes only 3 amps at maximum draw making Athena® peristaltic pump extremely efficient. The rugged Pelican™ 1300 case enclosure is made of impact and corrosion resistant ABS plastic to withstand demanding work conditions. Incorporating the most accurate and precise variable speed controller for consistent flow rates will ensure the technician reliable and consistent sample integrity. Includes a built-in digital display and sealed push buttons that are used to control the Athena® peristaltic pump.

Constant Voltage Boosting Technology (CVBT)

Proprietary system that boosts a “low voltage battery” to an amazing range of 13.5-14.5 volts when pressing the up and down button. That means faster water discharge rates and more consistent pumping rates. Which in turn makes your next groundwater field sampling event a profit center!

Masterflex Easyload™ 2 pump head design

Superfast tubing load times; No more stretching and jamming silicon tubing through the pump head and defiantly no more fiddling with screws to gain access to the pump head. Located on the case exterior allowing the user to easily shut the enclosure.

Precise Push Button Technology

Hook up clamps to an external battery.

Super strong – Lightweight Pelican™ 1300 case

The Athena® peristaltic pump utilizes a Pelican™ 1300 case that lends a hand to durability and weighs only 8 pounds. The rugged Pelican™ case enclosure is made of impact and corrosion-resistant ABS plastic to withstand demanding work conditions.

Tell Me More LCD Display

Athena® LCD tells you real-time flow control. That means you will visually see your current setting on the LCD screen when retrieving a sample using the Athena® peristaltic pump.

Push Button Back Flushing

Supplied with a push-button reversible flow feature for back-flushing.

Low Voltage Disconnect Warning (LVD)

The Athena® has a low voltage disconnect at 11 volts. In short, the Athena® will shut off automatically if the battery output voltage drops to 10.75 volts or lower. In short, the battery is reaching a “critically low level” so stop using the unit immediately and please recharge your battery within 24 hours.

Specifications:

• Pumps up to 2.5 liters per minute or as low as 40 mL per minute

• Suction lift up to 8 m

• Supplied with one pump head

• 3 m of DC battery clamps to hook up for super long sampling events

• Dimensions: Depth 25 cm x Width 33 cm x Height 17 cm

• Weight of Product: 3.6 kg
