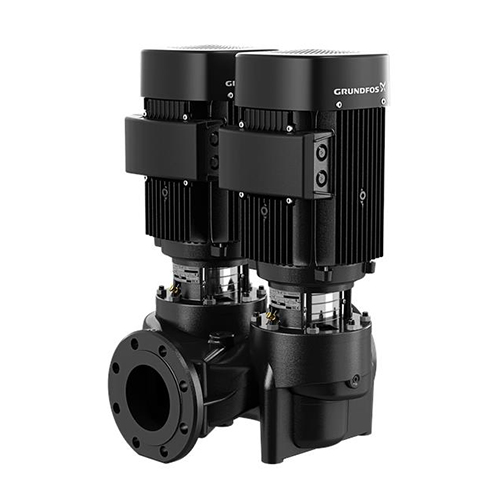

Inline pump Grundfos TPD 40-240/2 A-F-A-BQQE-IW1
Roll over image to zoom in
3,367.00 € excl. VAT
- Rated flow: 21 m³/h
- Rated head: 17.1 m
- Motor type: 90LE
- Rated power: 2.2 kW
- Mains frequency: 50 Hz
- Rated voltage: 3 x 220-240D/380-415Y V
- Rated current: 8.00/4.60 A
- Number of poles: 2
Single-stage, close-coupled, volute twin-head pump with in-line suction and discharge ports of matching size. The twin-head pump is built with two parallel power heads, each equipped with a fan-cooled asynchronous motor of the same capacity.
Rated flow: 21 m³/h
Rated head: 17.1 m
Motor type: 90LE
Rated power: 2.2 kW
Mains frequency: 50 Hz
Rated voltage: 3 x 220-240D/380-415Y V
Rated current: 8.00/4.60 A
Number of poles: 2
Net weight: 104 kg
Gross weight: 129 kg
