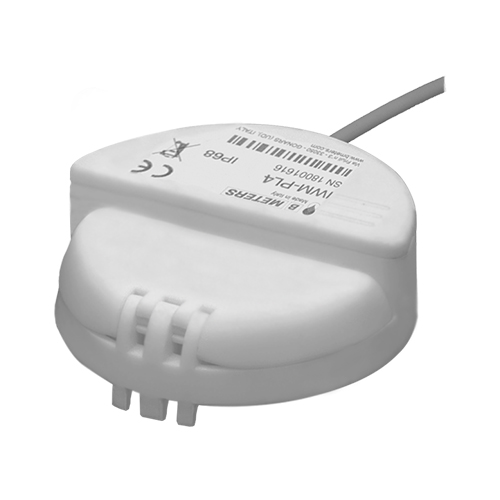

Pulse Emitter IWM-PL4

Price On Request

In stock

IWM-PL4 is suitable for many applications for remote reading in the residential, commercial and industrial fields, acting as an electronic pulse-lance. It allows the acquisition of the consumption of the counter by third-party systems with a universal interface and integrating advanced counting functions and fraud detection.

SKU: IWM-PL4 Category: Tags: , ,

AVAILABLE FROM MAY

IWM-PL4 is suitable for many applications for remote reading in the residential, commercial and industrial fields, acting as an electronic pulse-lance. It allows the acquisition of the consumption of the counter by third-party systems with a universal interface and integrating advanced counting functions and fraud detection. The use of an inductive target at the counter excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipes.

The IWM-PL4 is compatible with the B Meters Woltmann counters pre-equipped and allows:

• Consumption analysis (with incremental and decremental counting), Reverse flow compensation that can be activated for an always perfect alignment between the counter and the counter clock.
• Checking fraud (cable cutting and removal, application of the external magnetic field, reverse flow). Magnetic tampering at the counter and removal are recorded and reported to the acquisition system through fraud drive. The presence
reverse flow is monitored with dedicated impulse contact.
• Dedicated dosing function available for industrial applications.
• IP68 * protection allows the use of the module also for meters installed in harsh environments.
• NFC interface allows high flexibility of configuration, allowing setting of the output pulse weight in total autonomy through smartphone app (available weight values: multiples of the index value), and being able to configure the duration of the output pulse in function of the sensitivity of the acquiring system.

Technical Futures

Compatible water meters WDE-K50-I
Cable length 1.5m (4 conductors)
Exit signal Power supply: max 30VDC (100mA)
Type: open-collector, Polarized
Minimum pulse weight value (K) DN 50-125 10 liters, DN 150-200 100 liters
Battery Non-replaceable lithium, maximum duration 10 years
Protection IP68
Weight 120 g
Dimensions 88 x 70 x 25 mm
Operating temperature +1° / +55°C
Module programming requirements Android device (smartphone, tablet, etc.) equipped with NFC interface and NFC IWM Config APP.
Free download from GOOGLE PLAY
