4″ ATEX Pump ID ALPHA EX 9 kW 0.75

Price On Request

In stock

Pumping of liquids and extraction of leachate in landfill, drainage of fluids contaminated by hydrocarbons and groundwater. The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained hereafter.

Compare
SKU: ID ALPHA EX 9 Category: Tags: , ,

Pumping of liquids and extraction of leachate in landfill, drainage of fluids contaminated by hydrocarbons and groundwater. The ATEX pumps in conformity with 2014/34/UE Directive can be installed in potentially explosive atmospheres according to the marking explained hereafter.

FEATURES

  • Multistage centrifugal electric submersible pumps for 4” wells characterized by a floating impellers system that allows the pumping of leachate and charged liquid with small solid bodies.
  • External pump case, delivery port, suction port, shaft and other components in AISI 316 stainless steel.
  • Impellers and diffusers in special technopolymer with ceramic inserts at wear point.
  • The check valve made of AISI 316 stainless steel is installed in the delivery head.
  • Temperature of pumped liquid: max +40 °C.
  • Special mechanical seal, particularly robust and reliable, with high resistance to wear and chemical abrasion

MOTOR

  • 2 poles asynchronous motor, 50 Hz, 2850 rpm.
  • Class F insulation.
  • IP68 protection.
  • Working voltage: single-phase 230 V, three-phase 400 V
  • Oil filled electric motor.

ACCESSORIES

  • Control panel.
  • Intrinsically safe module with ATEX supply circuit.
  • ATEX level regulator with 5, 10 or 20 m of electric cable.
  • ID ATEX electronic level transmitter.
  • ID 4G1,5 round cable.

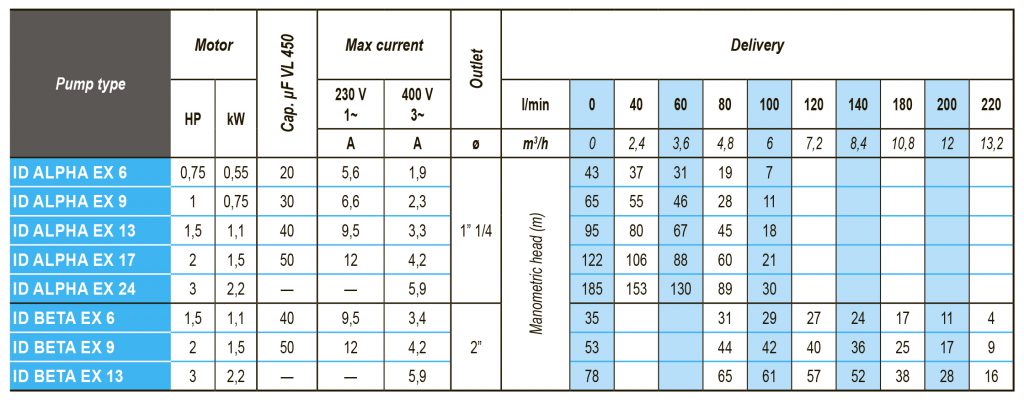

Technical specifications & Performance curves of ID ALPHA & BETA Series

Technical specifications & Performance curves of ID ALPHA & BETA Series

Additional information

Manometric head (m)

Delivery (l/m)

65

0

55

40

46

60

28

80

11

100
